BRC-04B UHF Rfid Door Reader Access Control High Speed Read Tag Based On Impinj R2000

Brand Name : broadradio

Model Number : BRC-04B

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, PayPal

Delivery Time : 3-5works

Packaging Details : Standard Export Carton, Foam and Protective Film

name : RFID Portal Reader,RFID access control

Frequency : 920MHz~928MHz

Size : 1370×370×77mm (per pcs)

weight : 13KG(per pcs)

Interface : RS-232(DB9),RJ45

Power Supply : AC 220V±10% 47~63 Hz

e-mail : cliff.lee@broadradio.com.cn

Recommended width per channel : 0.8~1.5m(maximum 2.2m)

Contact Now

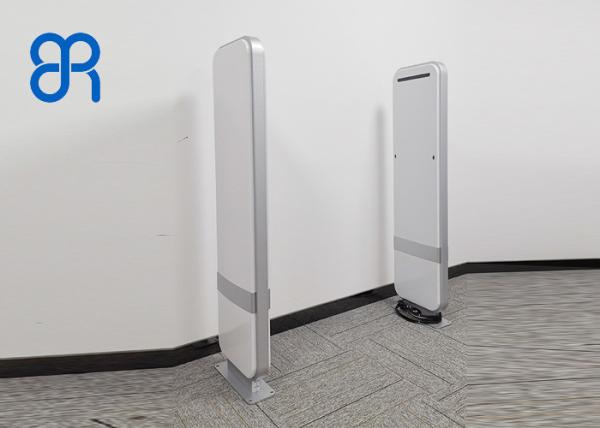

BRC-04B UHF RFID Portal Reader access control,based on Impinj R2000 high-speed read tag


BRC-04B UHF access control system has high-speed read tag performance and good read/write area control capability. It has multi-channel, multi-protocol, multi-tag reading, low misreading rate, multiple options, and other internal integration. High-gain antenna group, realizes narrow beam design of water level, accurate access coverage area, no blind spots, high-speed reader and control module based on Impinj R2000, providing standard RS232 or RJ45 interface for easy connection to software platform. The product is especially suitable for all kinds of logistics, warehousing, books, archives, personnel attendance management. Support both offline and online alarm modes. Equipped with alarm buzzer module, and sound and light alarm for illegal labels. The channel width can support 0.8m-4m.

Product Features
  • Independent intellectual property design
  • Support server mode to achieve multi-channel control
  • Support EPC C1 G2(ISO18000-6C)protocol
  • Frequency 902~928MHz(or customized 865~868MHz)
  • Output power 30dbm(adjustable)
  • Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode
  • Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot
  • Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable
  • Wider RFID safe door placing distance, maximum 2.2m
  • Motion direction judgment optional (by infrared diode pair)
  • LED display optional for showing label numbers
  • New label reading prompt function optional
  • Burglar alarm function optional
  • Fashion appearance, easy assembly



Product Specifications
Size: 1370×370×77mm (per pcs)
Weight: 22KG(per pcs)
Frequency: 920MHz~928MHz
Protocol: ISO 18000-6C
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Ambient humidity: 5%~95%RH no condensation
Power Supply: AC 220V±10% 47~63 Hz
Power Consumption: approx. 45W
Interface: RS-232(DB9),RJ45
Recommended width per channel: 0.8~1.5m(maximum 2.2m)
Access Control Components (N channels)
  • Rack N+1 pcs (N channels)
  • 9dBic narrow beam antennas 4*N pcs
  • Control panel and power module ≥N/2 pcs
  • Read-write module N pcs
  • RS232 serial port N pcs
  • Ethernet port N pcs
  • Exchange board >N ports
  • RF feeder 4*N pcs
  • Infrared radiation 2*N sets
  • Infrared connector 2*N sets
Applications
Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications.

Strength advantage

1) 13,000 square meters RFID production base

2) One-on-one service for more than 20 senior RFID engineers

3) 500 production employees guarantee production capacity

4) Serving more than 2,000 integrators and cooperating with Fortune 500 companies

5) Won the “National High-tech Enterprise” and “Shenzhen High-tech Enterprise” Double High Enterprise
